CUT-75

AC-DC > Şase Montaj > Üç çıkışlı ürünler

75W Üç Çıkışlı Low Profile AC-DC Digital Güç Kaynağı

Genel Özellikler

Triple (useable as dual) output supply
Compact (3 x 5” footprint)
Low Profile (1.06”)
High Efficiency 85%
Individual output regulation
Cost Efficient Solution
Several mechanical & connector options

Key Market Segments & Applications

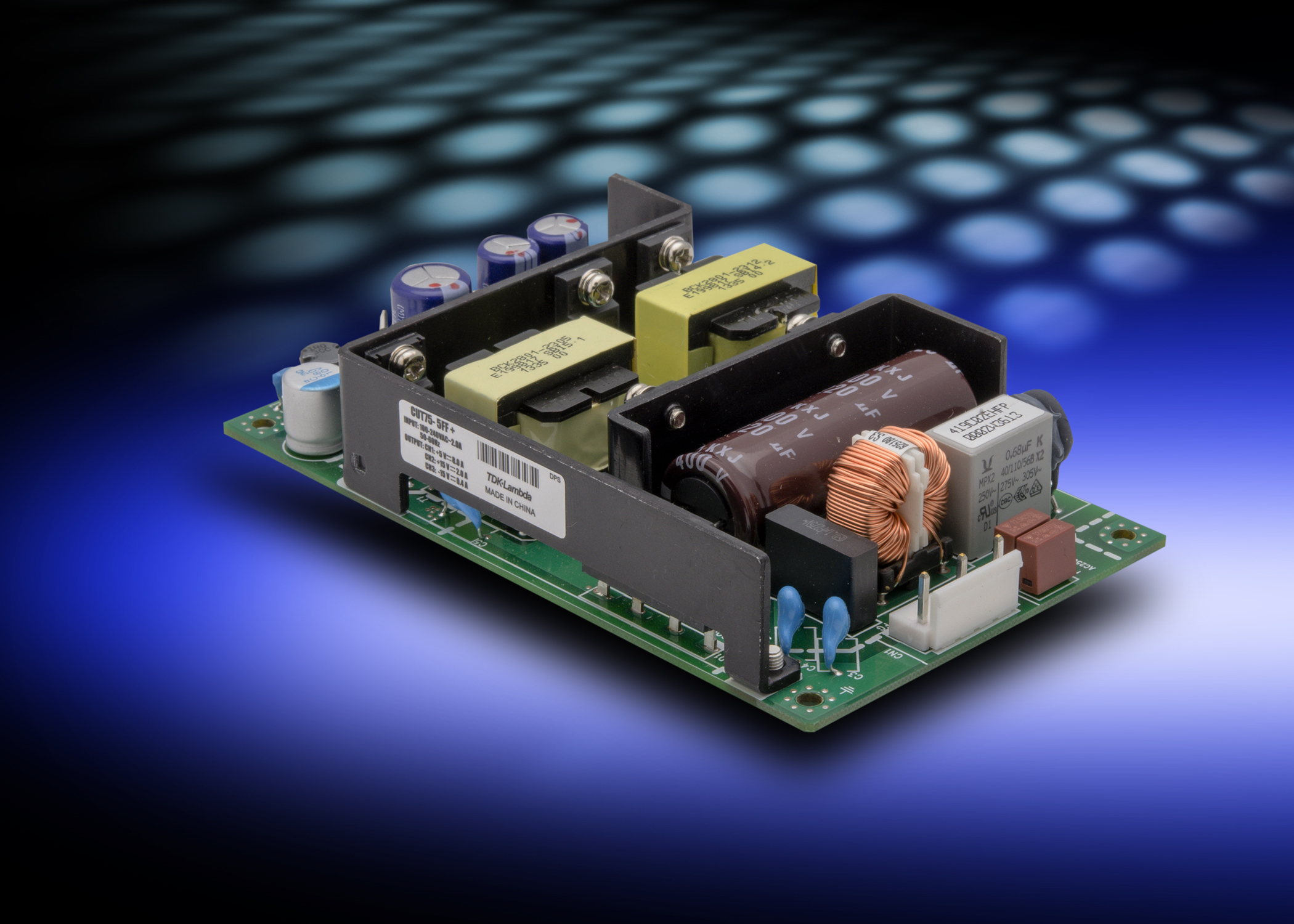

Büyük resim

The triple output CUT75 has two independent, isolated, converters, one for the main 5V output, and one for the auxiliary outputs. This topology provides several benefits - no minimum loading, enhanced load & line regulation and the ability to connect the auxiliary outputs in series to generate either a 24V or 30V output. Options include models with a cover (/A), baseplate (/B) or terminal block connections (/T).

Downloads
CUT75 Datasheet
Specification, Drawings, Technical Files
